Precision Remanufacturing for the Cummins ISB HE300 Donut-Top Turbocharger

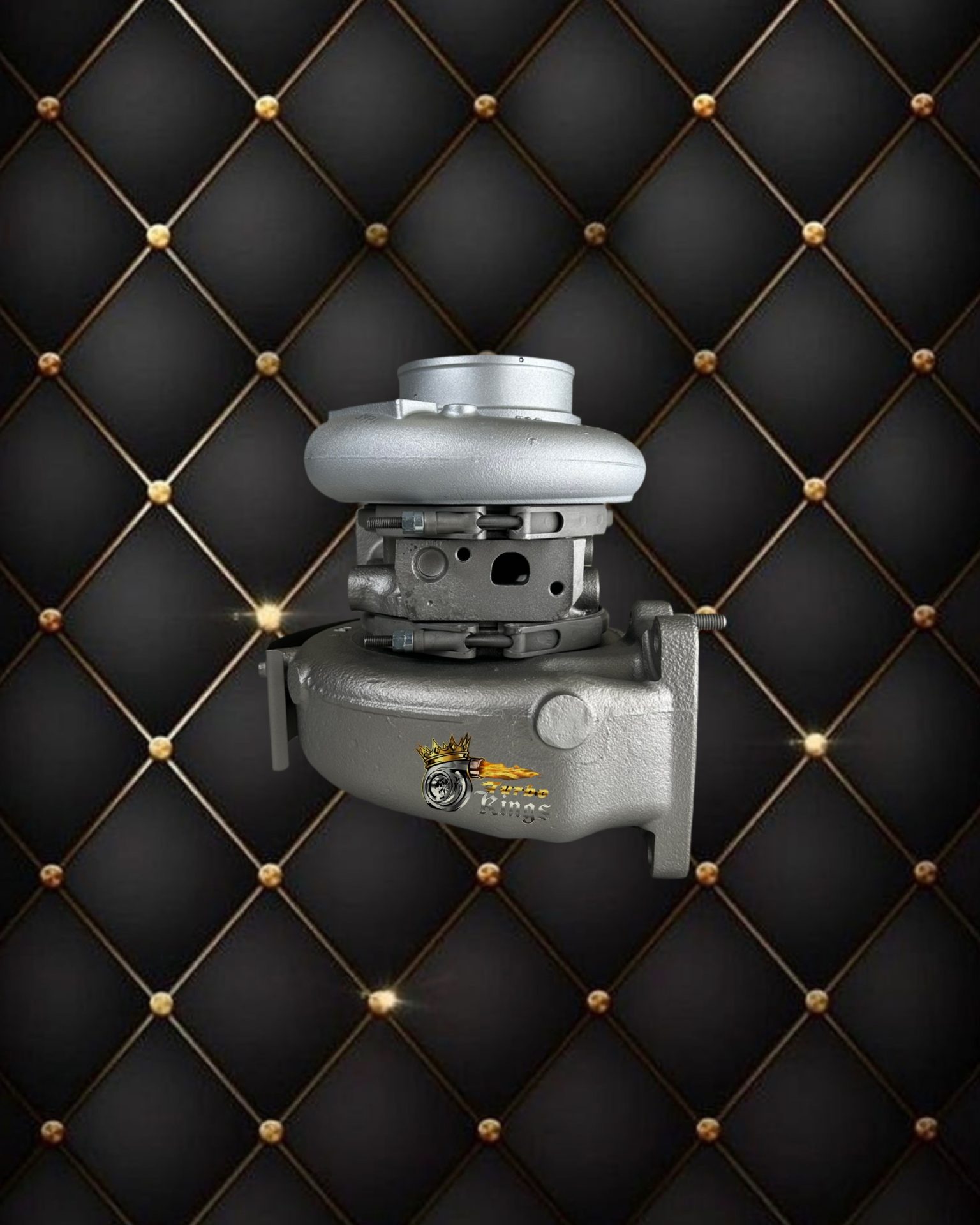

This Turbo Kings remanufactured Holset HE300 DT-1BNW turbocharger (P/N 6411519RX) is engineered for Cummins ISB applications that use the donut-top compressor cover, one-bolt turbine outlet, and non-water-cooled bearing housing. This configuration is common across a range of vocational trucks, industrial equipment, and medium-duty applications where durability, simplified cooling, and wastegate reliability are required. The DT design ensures excellent airflow distribution into the compressor wheel, while the HE300 architecture offers quick spool-up and stable boost delivery under varying load conditions.

Each unit begins with a complete OEM-grade teardown and inspection. All housings are media-cleaned, surface-prepared, and checked for cracks, erosion, flange distortion, and scroll geometry accuracy. The center housing components are ultrasonically cleaned and measured to confirm proper oil clearance and bearing alignment. Any component outside Cummins or Holset dimensional specifications is removed from the build cycle.

Seal Integrity & Flow Efficiency

Turbo Kings restores the CHRA using new bearings, thrust components, and piston rings designed to maintain stable oil film under heat, soot, and continuous load. The shaft and wheel assembly is measured for straightness, blade integrity, and root stability to prevent vibration or imbalance during operation. All sealing surfaces—including the compressor cover seat, turbine outlet, V-band flange, and oil inlet/outlet ports—are resurfaced or corrected as needed.

The rotating group undergoes high-speed VSR balancing to ensure smooth operation at full boost and prevent premature bearing wear. The wastegate actuator is calibrated to ensure proper opening pressure and consistent bypass behavior across the ISB operating range. Flow path clearances in both the compressor and turbine housings are measured to confirm uniform boost production and prevent flow loss at high RPM.

What Makes Turbo Kings Different

Turbo Kings’ remanufacturing process emphasizes repeatability and engineering accuracy. Unlike low-cost rebuilds, we do not reuse worn bearings, thrust plates, seals, or actuators. Every HE300 DT-1BNW turbo receives:

• Brand-new journal bearings, thrust components, and piston rings

• Precision balancing of the fully assembled CHRA

• Restored compressor and turbine housings

• Matched clamp, stud, and hardware fitment

• Clean-room assembly and torque-spec fastener installation

• Visual QC and final mechanical verification

This ensures a turbocharger that installs easily, spools correctly, and delivers the dependability Cummins ISB engines are known for.

Why Fleets and Owner-Operators Trust Turbo Kings

The ISB platform relies heavily on proper turbocharger performance to maintain torque, fuel efficiency, and throttle response. A properly remanufactured HE300 restores consistent boost control, smooth drivability, and predictable load performance across daily commercial cycles. Turbo Kings units are built to withstand heat, soot, and vibration in real-world conditions—not just pass a bench test. Fleets trust us because our turbos are built to OEM mechanical standards with a higher level of precision and quality control.

Our Process at a Glance

• Complete teardown & cleaning

• Dimensional verification of all housings

• New bearings, thrust set & seals

• Shaft, wheel, and CHRA validation

• High-speed VSR balancing

• Wastegate calibration

• Final inspection & serialization

Cross-Reference Part Numbers

6411519RX, 5327358, 5354524, 5354525, 5604160, 5355646, 1700323777
