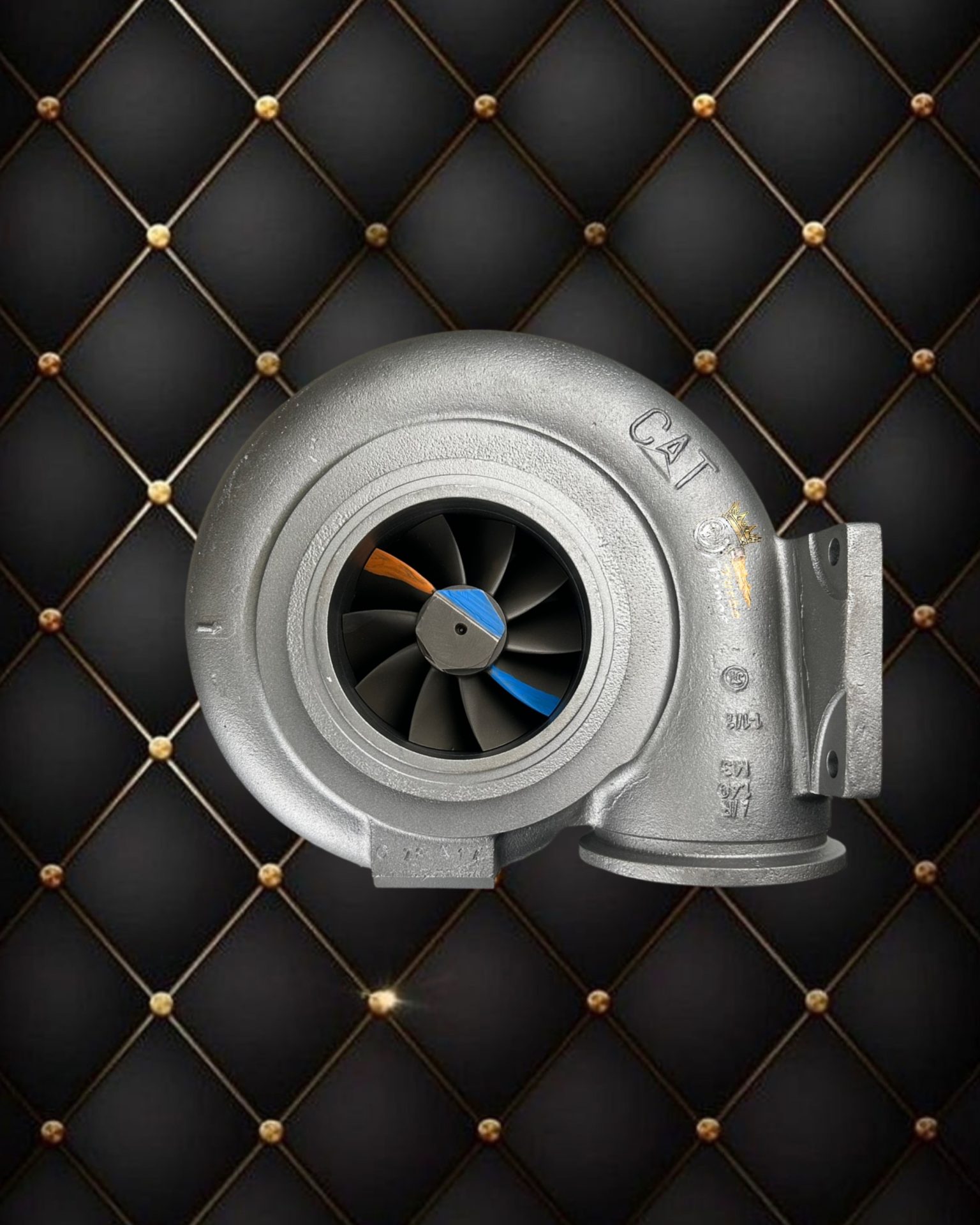

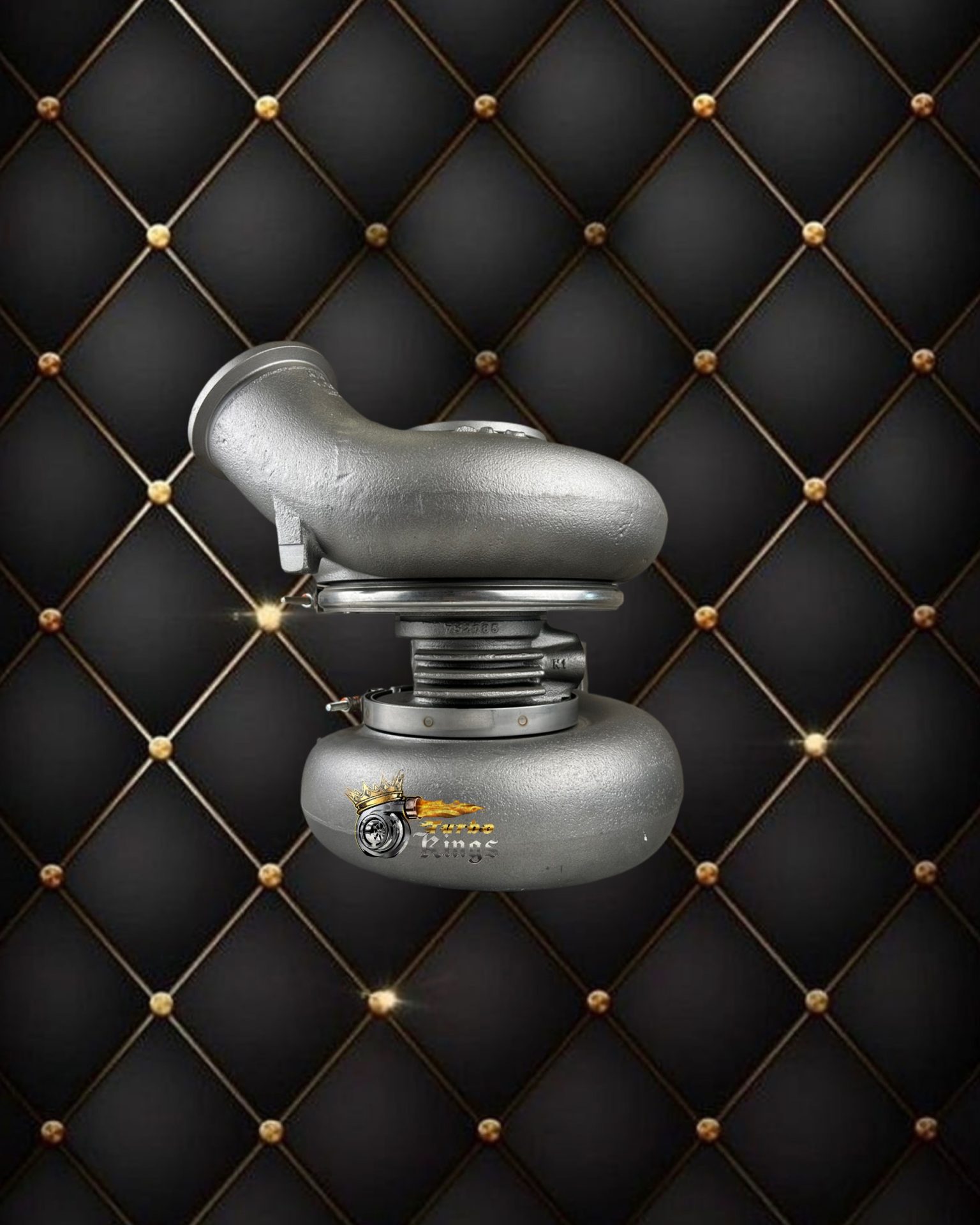

CAT C15 20R-0028 2008–2010 Low Pressure Remanufactured Turbocharger
Precision Remanufacturing for the 2008–2010 CAT C15 ACERT
The Turbo Kings remanufactured CAT C15 20R-0028 Low Pressure Turbocharger restores factory-level boost control, airflow stability, and ACERT reliability for 2008–2010 engines. As the downstream unit in the ACERT compound system, the low-pressure turbo manages high-volume airflow and directly influences spool timing, thermal efficiency, and overall boost balance with the high-pressure side.
Every turbo is rebuilt from the ground up with OE-grade internals, precision machining, and calibrated balancing to match the performance of a new Garrett turbocharger.
Seal Integrity, Balance, & Flow Efficiency
Each unit undergoes:
New journal and thrust bearings
Precision-corrected shaft and bearing housing clearances
Full VSR high-speed balancing to OEM specifications
Compressor/turbine wheel inspection for cracks, blade fatigue, or warpage
Housing resurfacing and flow-path cleaning
Wastegate function is verified for correct cracking pressure and smooth movement to maintain low-RPM efficiency and high-RPM airflow stability.
What Makes Turbo Kings Different
Turbo Kings reman units follow a rigorous OE-modeled workflow:
Hot tank, dry-ice blast, and media-polish preparation
CHRA assembly in a controlled environment
High-speed balancing at operating temperature
Thread restoration and sealing-surface correction
100% QC, visual and mechanical testing
Reinforced packaging designed to prevent shipping damage
Our Process at a Glance
Complete teardown & cleaning
Bearing and seal overhaul
Shaft, wheel, and CHRA measurements
VSR balancing
Wastegate calibration
Final inspection & package protection
Why Fleets and Owner-Operators Trust Turbo Kings
This turbocharger restores the C15 ACERT’s intended responsiveness, cooler operating temps, and smooth compound-boost transition. Whether the truck runs long-haul, heavy freight, vocational, or mixed duty, a properly remanufactured 20R-0028 LP turbo returns the power, reliability, and uptime CAT engines are known for.
Cross Reference Part Numbers
20R-0028, 10R-6306, 286-3198, 286-3200, 291-2895, 291-2896, 291-2897, 293-5420, 293-5421, 293-5422, 353-9902, 353-9903, 353-9905, 760524-0017, 760524-0018, 760524-0019, 760524-0023, 760524-0024, 760524-0025, 760524-0029, 760524-0030, 760524-0031, 760524-5017, 760524-5018, 760524-5019, 760524-5023, 760524-5024, 760524-5025, 760524-5029, 760524-5030, 760524-5031, 760524-9017, 760524-9018, 760524-9019, 760524-9023, 760524-9024, 760524-9025, 760524-9029, 760524-9030, 760524-9031.
