Precision Remanufacturing Backed by Real Testing

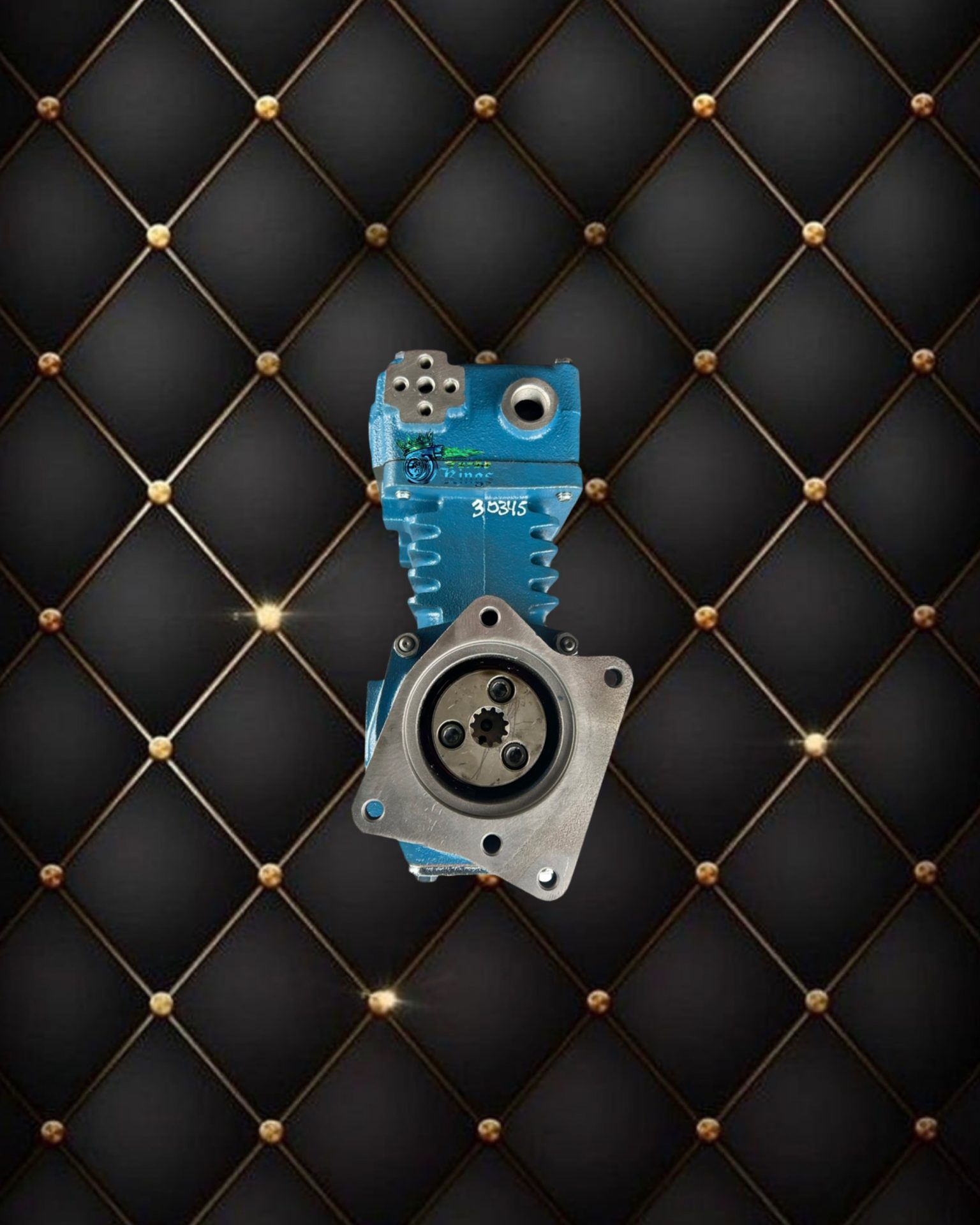

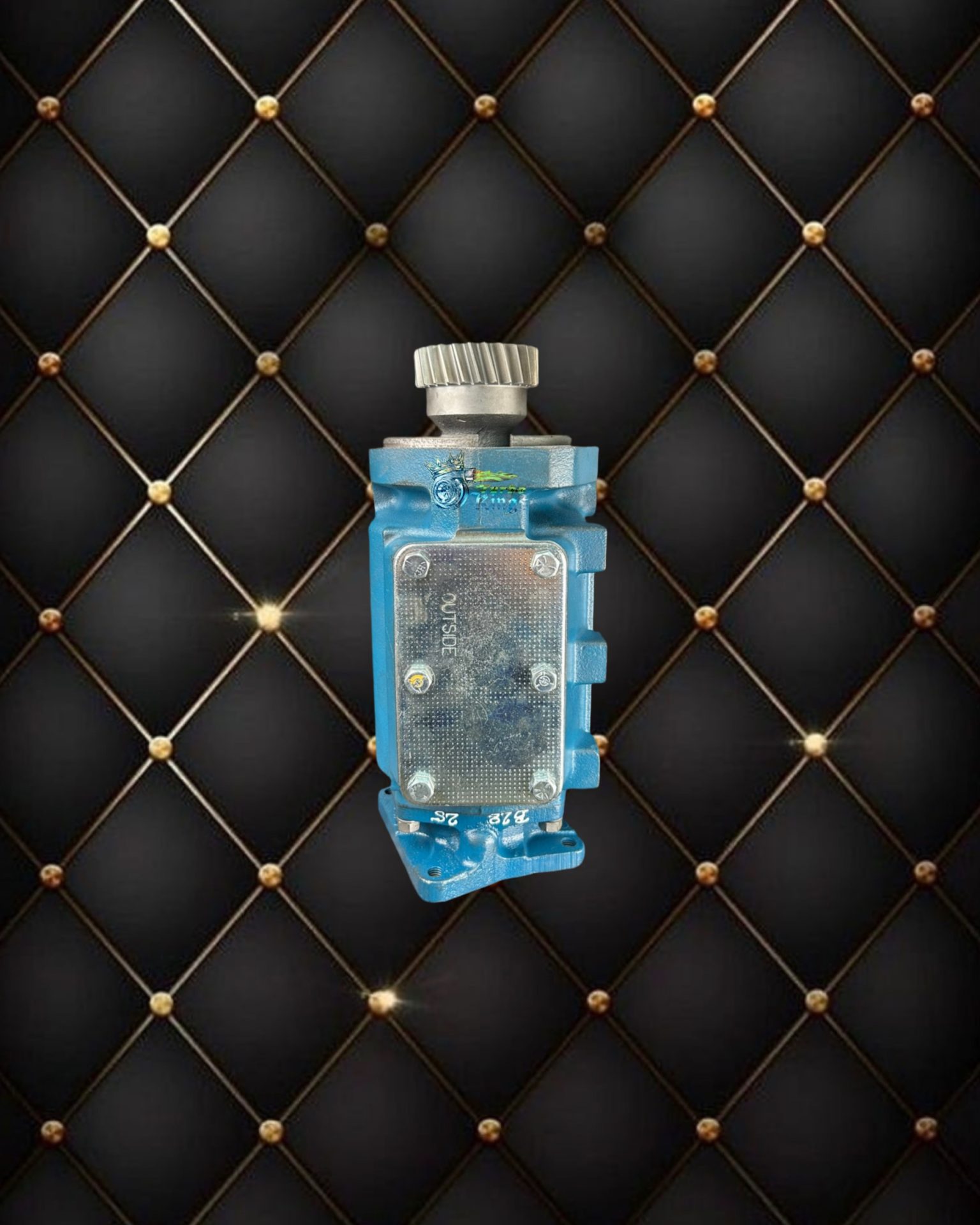

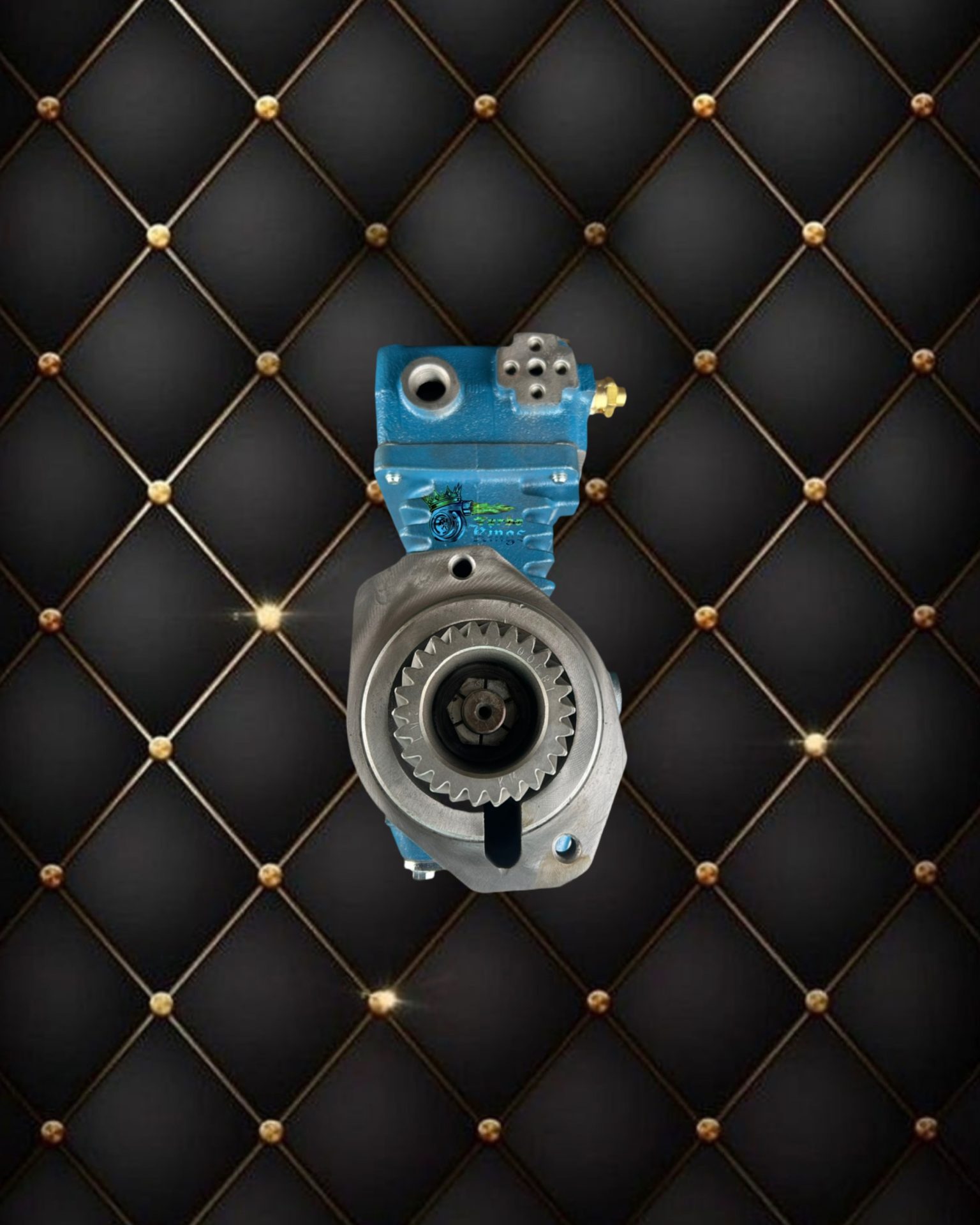

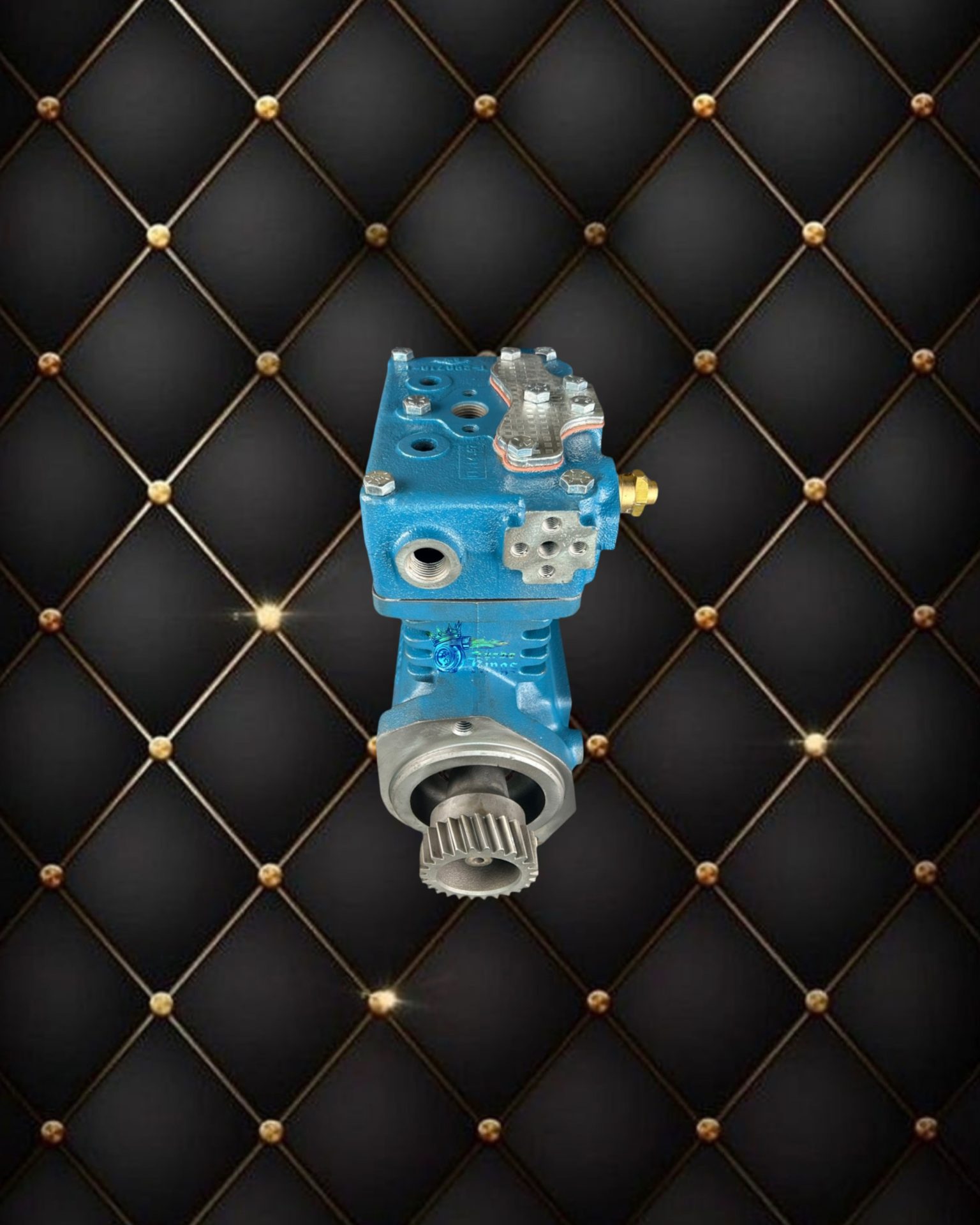

At Turbo Kings, every International 5004613 FV air compressor is rebuilt through a precision-controlled, in-house process that restores full OEM functionality, reliability, and verified performance.
Manufactured by Bendix and installed by Navistar / International on DT466, DT466E, HT530, and HT570 enginesbetween 1998 and 2004, this compressor belongs to the TF-550 series — a two-cylinder, single-stage, water-cooled, gear-driven platform used across the DT family of engines.
The FV designation identifies the Front Valve configuration, where the discharge valve assembly is positioned at the forward section of the head for improved airflow routing and easier service access. Functionally, it maintains the same 16.5 CFM @ 1250 RPM output as other TF-550 models, but with a front-mounted port layout favored in many DT466 chassis.
At Turbo Kings, we don’t reseal or cosmetically clean cores — we rebuild, re-spec, and re-certify them. Each compressor is fully disassembled and media-cleaned before precision inspection. Bores, bearings, and crank journals are gauged for taper, scoring, or fatigue; valve seats are measured for concentricity; and all wear components are replaced with Bendix-spec OEM-grade parts to restore original compression balance and efficiency.
All air and coolant passages are ultrasonically cleaned, removing internal scale, carbon, and oil buildup that conventional cleaning can’t reach. This ensures unrestricted airflow, balanced cooling, and steady output under continuous duty.
Once assembled, each compressor undergoes bench-testing under simulated engine load, verifying pressure build rate, oil carry-over, cut-in/cut-out stability, and leak integrity. Only units that meet Bendix and Detroit Diesel flow standards are serialized, logged, and cleared for shipment.
This isn’t a guess — it’s verified performance, confirmed right here at Turbo Kings.
What Makes a Turbo Kings Rebuild Different
Bendix OEM Foundation – Rebuilt using genuine Bendix engineering data, matched to International DT466 (1998–2004) FV specifications.
In-House Flow & Pressure Testing – Bench-tested under hydraulic load to validate output, balance, and oil control.
Ultrasonic Cleaning Process – Air and coolant lines ultrasonically cleaned for unobstructed internal flow.
Precision Machining – Heads, valve seats, and deck surfaces resurfaced to OEM tolerances for proper compression and sealing.
Pre-Lubricated & Ready to Install – Shipped sealed and primed with lubricant for drop-in installation.
Warranty Confidence – Covered by a 12-month, unlimited-mileage warranty, with serialized records and test data archived.
Why Fleets and Owner-Operators Trust Turbo Kings
Fleets and service shops choose Turbo Kings because each compressor is validated under real operating conditions — not assumed.
Our process ensures each unit delivers OEM air volume, leak-free sealing, and thermal stability.
With ultrasonic cleaning, precision machining, and digital test tracking, we provide traceable, installation-ready compressors built for consistent service life and reduced downtime.
Our Process at a Glance
Disassembly & Cleaning – Full teardown and inspection for wear or damage.
Ultrasonic Passage Cleaning – Internal air and coolant lines restored to OEM cleanliness.
Parts Replacement & Machining – All wear items replaced; housings and heads machined flat to spec.
Assembly & Torque Verification – Components aligned and torqued to precise clearances.
Flow & Pressure Testing – Bench-tested for airflow, pressure buildup, and oil control.
Final Inspection & Documentation – Serialized, logged, and paired with test and warranty data.
Standard Features
• Fully Flow- and Pressure-Tested
• Air & Water Passages Ultrasonically Cleaned
• Pre-Lubricated and Ready to Install
• Leak-Free and Output-Verified
• 12-Month Unlimited-Mileage Warranty
• Fast Core Exchange Program
Applications
Compatible with:
International / Navistar DT466, DT466E, HT530, and HT570 engines (1998–2004)
Medium- and Heavy-Duty International trucks and buses equipped with Bendix TF-550 / 5004613 FV (front-valve) compressors
